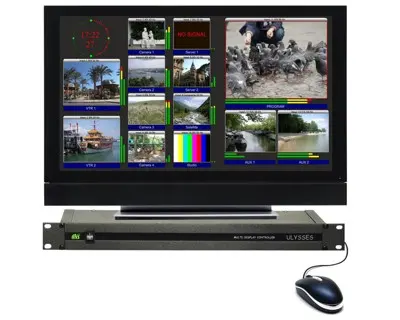

VS Ulysses Multiviewer

súčasné zobrazenie 4 až 20 rôznych videosignálov v reálnom čase na FullHD monitore. Možné konfigurácie 4, 8, 12, 16, 20 videovstupov kompozit alebo kompozit/SDI, ktoré môžu byť zobrazené v rôznych veľkostiach a pozíciách, modulárna končtrukcia po 4 vstupoch, nastavenie vlastností obrazu, zamrznutie obrazu, zväčšenie, full screen vybraného vstupu, informácie o vstupe, USB port pre myš alebo klávesnicu, ovládanie cez Lan alebo internet RJ-45, 2x prepínateľný SDI výstup, HDMI výstup pre Full HD monitor, monitor nie je súšasťou dodávky. Full HD 1920x1080i monitor output through HDMI interface The maximum modules number is 4, so that the maximum inputs number is 4x4=16. Besides, there are always 4 DV inputs which can be used for displaying on the screen. Any window can be moved, sizing, freezing and fullscreened by mouse. Ready layout can be saved/restored from/to memory as preset. Graphic objects such as logo, clock can be displayed. Audio level meters can be displayed ( up to 4 channels for one window). Images features such as brightness, contrast, saturation and hue can be adjusted . Text titles such as source name, current mode, etc. can be displayed. Tally function allows to display Program/Preview marks for corresponding sources. 2 SDI outputs to which inputs can be switched by mouse or GPI signal. Controlling through USB, Ethernet, RS-422/485. 19'' 1U Stand alone device. Power 220 V. Weight 3 kg. Prosím informujte sa na aktuálnu cenu
