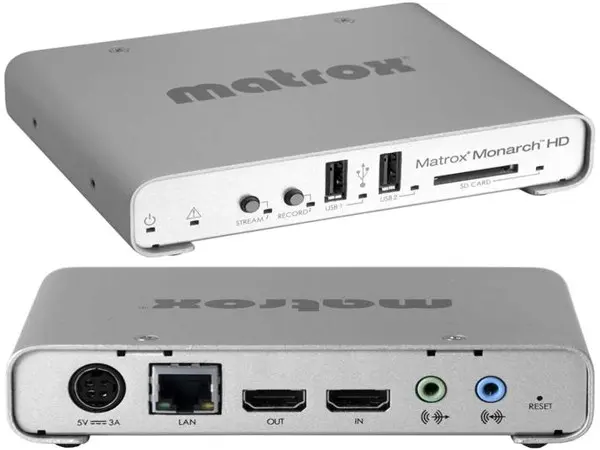

Matrox Monarch HD

profesionálne riešenie pre nahrávanie videa a videostreaming. Malé pre použitie jednoduché zariadenie pre profesionálnych video producentov, ktorí potrebujú súčasne vysielať živý stream a nahrávať v master kvalite pre postprodukciu. Zdroj signálu môže byť z ľubovoľného HDMI zdroja ako kamera alebo switcher, Matrox Monarch HD generuje H.264 stream kompatibilný s RTPS alebo RTMP protokolom. Súčasne Matroch Monarch nahráva vysokokvalitné MP4 súbory na SD kartu, USB zariadenie alebo na sieťový disk. Je diaľkovo ovládateľný počítačom alebo mobilným zariadením cez webové rozhranie. Kvalite vysielania streamu a nahrávania môže byť rozdielna tj. nahrávate v 30Mbps a vysielate 20Mbps. Nahrávanie je vo vysokej kvalite H.264 videa ako MP4 súbor. Technické údaje (angl.) Inputs and Outputs: HDMI Video Input Progressive 1920x1080 @ 60/59.94/50/24/23.98 Frames per second 1280x720@ 60/59.94/50 Frames per second Interlaced 1920x1080i 29.97/25 frames per second Video Input Format is Auto-Detected HDMI Video Output Pass-through of video input signal. 1 Frame delay from input to output Audio Input Processes first two channels of audio embedded in HDMI input signal Unbalanced analog stereo input via 1/8” (3.5mm) jack Line Level Audio Output Passthrough of all embedded audio channels in HDMI signal Unbalanced analog stereo output via 1/8” (3.5mm) jack – passthrough of input Line Level H.264/MPEG-4 Part 10(AVC) Video Encoder Resolutions Selectable encoding resolutions ranging from: 96x96 to 1920x1080 Bit Rates Ranges 100 kbps to 30 Mbps - for recording 100 kbps to 20 Mbps - for streaming Note that when both streaming and recording resolutions are above 1280 x 720, the encode parameters must be identical for both processes. Independent record and streaming settings are available when either the streaming or the recording resolution is 1280 x 720 or below. Encode Frame Rates Encode frame rates representing 1:1, ? and ?of the input frames rates are supported. Note that the maximum encoded frame rate is 30fps when input resolution is 1920x1080. Encoding Profiles Baseline, Main and High Encoding Controls 2.0, 3.0, 3.1, 4.0, 4.1 Level Support IBP GOP size and structure Variable bite rate support Deblocking Filter MPEG-4 AAC Audio Encoder Standard AAC-LC Sample Frequency 44.1 and 48 kHz when digitized from analog source Channels 2 channels Stereo (L/R) Bit Rates Range from 96 kbps to 256 kbps Scaler: High Quality multi-tap 10 bit Scaler and De-Interlacer Advanced Noise filtering Available to both streaming and recording operations Recording File Format File Type Industry Standard MP4 with two channels of embedded AAC audio Network Interfaces Connector RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing Protocols RTMP, RTSP/RTP IPv4 Support Unicast and Multi Unicast User Interface Computer Based control HTTP via standard PC or Mac Web browser Physical Interface On Device push buttons for independent streaming and recording Start/Stop control Storage Types for File Recording 2 x USB 2.0 Support for NTFS file system Note, the Monarch HD will support writing to USB3 devices at USB2 speeds. 1 x SD card Slot Supports SD and SDHC cards Network Mapped Drive Support for writing to Shared Folders in Computers found on Network using NFS or Windows Share protocols Matrox Command Center Web UI Status Page Provides relevant operational information concerning Status of MonarchHD unit at that time including; Input video detection and resolution, State and configuration of Streaming operation, State and configuration of Recording operation, Error conditions, etc... Control Page Recording and Streaming operations initiated here including Synchronized start/stop operations. Multiple Monarch devices can be synchronized in a Master/Slave topology to allow for synchronized record and streaming operations across multiple units via a single interface. Record Settings Configuration of recording parameters set within this page. A number of presets are included which are selected based on post event use of the recorded Asset. If file is to be uploaded for VOD purposes, a YouTube preset may be selected. If content is to be edited for high quality production, a master quality preset may be preferable. Streaming Settings Configuration of Streaming parameters performed on this page. The RTMP or RTSP credentials as well as encoding parameters are entered. While a preset cannot include the streaming credentials, encoder presets have been included to quickly select an ideal encoders settings based on desired delivery resolution or bitrate. The Monarch HD will have been tested with a number of CDN providers as well as feeding Wowza Media servers and Adobe Media Server platforms. Administrative tools Device Naming, IP configuration, Date/Time settings and a variety of other tasks performed via this page Additional Tools Matrox provide PC or Mac based utilities to help detect Monarch Device on a particular Network (DHCP server required) Physical Dimensions 5.60 in. long (14.2 cm), 4.30 in. deep (10.9 cm) excluding inserted SD-CARD, 4.40 in. deep (11.2 cm) including inserted SD-CARD, 1.22 in. (3.1 cm) high including rubber feet Weight 0.66 lbs (300 grams) excluding power supply Operating conditions 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing) Power Line Voltage: 100-240V AC, 0.5A, Frequency: 50-60 Hz, Input: External AC/DC adapter - IEC320-C14, Output: +5VDC, 3A max, Total power consumption: 15 Watts, DIN4 Locking Power Connector Transport and Storage Max Operating Altitude: 3000 meters Max Transport altitude: 12,000 meters Storage Humidity 5 to 95% relative humidity (non-condensing) Regulatory FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI RoHS Directive 2002/95/EC Kit Contents In the box Matrox Monarch HD device Matrox Monarch HD external power supply IEC-C13 power cord (US and EU) GB/AU Adapter
