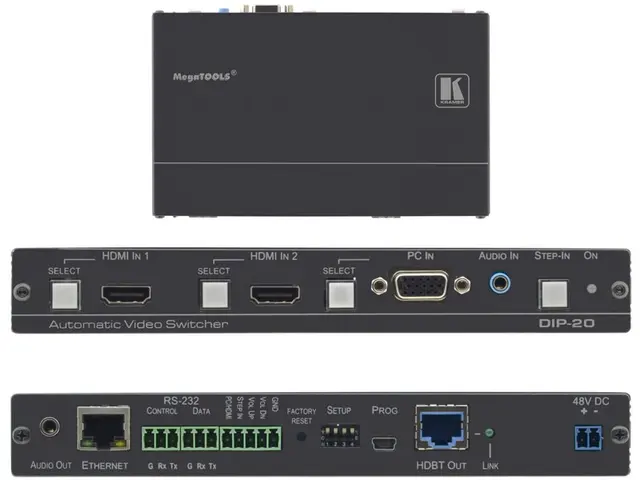

Kramer DIP-20

automatický switch 2x HDMI, 1x VGA a audio prepínač 4K60 4:2:0 Step-In PoE Transmitter s ethernetom, RS?232 a stereo zvuk cez Extended HDBaseT, Max. Data Rate 10.2Gbps, podporované rozlíšenie až 4K 60 (4:2:0), automatická detekcia aktívneho vstupu, automatické nastavenie posledného vstupu, možnosť prepínania lokálne a kontaktom, extender HDBaseT prenos, HDTV, HDCP, Intelligent EDID, dosah max 180m v ultra móde (1080p 60Hz 24bpp), Data Equalization and Reclocking, Local Balanced Audio De-Embedding, Lockable EDID.. HDBaseT certifikácia! Popis v angl. pre Kramer DIP-20 INPUTS: 2 HDMI on HDMI connectors, 1 VGA on a 15?pin HD (F) connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack. OUTPUTS: 1 HDBaseT on an RJ?45 connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack. PORTS: 1 Ethernet on an RJ?45 connector, 1 RS?232 3?pin terminal block control port, 1 RS?232 3?pin terminal block data port, 1 USB on mini USB connector. CONTROLS: Remote switches for input switching, step?in, volume control, and device reset switch. STANDARDS: HDMI with Deep Color, x.v.Color™ and 3D; HDCP—works with sources that support HDCP repeater mode; HDBT certified. MAXIMUM ANALOG AUDIO LEVELS: 3.1Vpp. THD: –75dBu. SNR: 0.013%. SUPPORTED WEB BROWSERS: Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35; MAC:Chrome version 35, Firefox version 27, Safari version 7; Android OS: Chrome version 35; iOS:Chrome version 35, Safari version 7. MAXIMUM TRANSMISSION DISTANCE: 180m (590ft) up to 1080p @60Hz @24bpp in extended mode, 130m (430ft) up to 1080p @60Hz @36bpp in normal mode. POWER CONSUMPTION: 48V DC, 630mA. OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F). STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F). HUMIDITY: 10% to 90%, RHL non?condensing. COOLING: Convection. ENCLOSURE TYPE: Aluminium. DIMENSIONS: 18.75cm x 11.5cm x 2.54cm (7.38” x 4.53” x 1.0”) W, D, H. WEIGHT: 0.46kg (1.0lbs) approx. SHIPPING WEIGHT: 1.16kg (2.56lbs) approx. ENVIRONMENTAL REGULATORY COMPLIANCE: Complies with appropriate requirements of RoHs and WEEE. INCLUDED ACCESSORIES: Power adapter 48V DC 1.36A, ADC?DPM/HF DisplayPort (M) to HDMI (F) adapter cable, power cord, DIP?20BP black panel. OPTIONS: Rack adapter RK?T2B. WARRANTY: 7 years parts and labor. Kompatibilný prijímač: napríklad TP-588D Kramer Electronics patrí medzi najvýznamnejších výrobcov zariadení pre spracovanie a distribúciu signálu. V ich širokej ponuke nájdete prepínače, matrix switche, extendery, prevodníky signálu, AV procesory, konvertory, distribučné zariadenia, zosilňovače, montážne prvky, káblové sytémy atď.. Na ich stránke nájdete kompletnú ponuku.
