Gefen Video Wall Controller

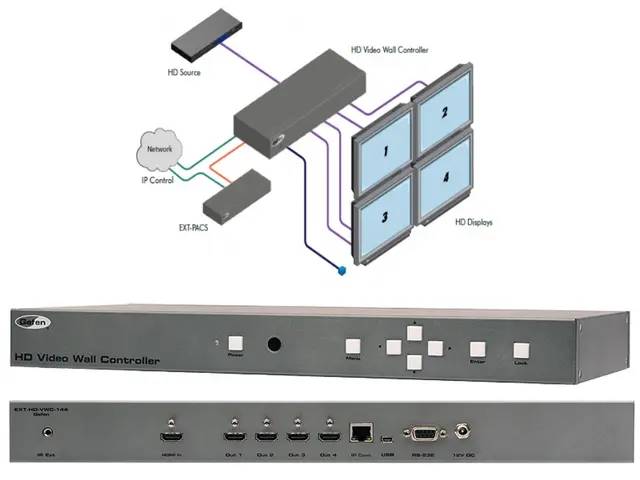

zariadenie pre vytvorenie 2x2 videosteny pomocou štyroch HDMI 1080p monitorov. 1x HDMI vstup, 4x HDMI výstup. Zariadenie vhodné pre reklamu, obchody, kluby, kontrolné centrá a podobne. Nastavenie vlastností, menu, ovládanie pomocou tlačidiel, IR ovládania, RS232 alebo IP. Features Create a 2x2 video wall from any Hi-Def source, using four HDTV displays Split and scale a single Hi-Def source to four displays Input and Output resolutions up to 1080p Full HD and 1920x1200 (WUXGA) HDCP compliant Advanced Bezel Compensation feature provides compatibility with virtually any screen frame width, and allows for accurate display of the image Controllable via front panel, IR, IP (web server interface, Telnet, and UDP), and RS-232 Easy to use on-screen Graphical User Interface (GUI) Advanced web server interface using an external computer Handheld IR remote control Field-upgradeable firmware via web server interface USB port (reserved for future product enhancements) Locking power supply connector 1U tall rack-mountable enclosure, rack ears included Specifications Video Input connector: (1) HDMI Type A, 19-pin, female, locking Video Output connectors: (4) HDMI Type A, 19-pin, female, locking RS-232 connector: (1) DB-9, female IP Control connector: (1) RJ-45, female Menu button: (1) tact-type, white with blue backlight color Menu Navigation buttons: (5) tact-type, white color On/Standby button: (1) tact-type, white with blue backlight color Standby Indicator: (1) LED, red color Power Supply: 12V DC, locking Power Consumption: 24W (max.) Dimensions (W x H x D): 16.9" x 1.7" x 7.9" (430mm x 42mm x 200mm) vUnit Weight: 7 lbs. (3.2 kg) Gefen je jedným z popredných výrobcov zariadení pre spracovanie a distribúciu signálu.
