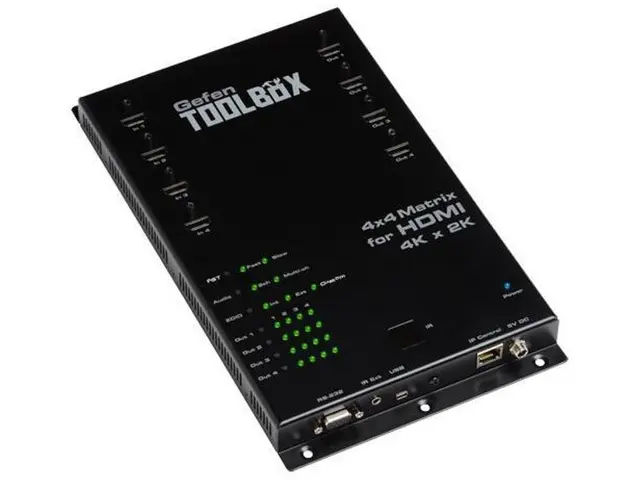

Gefen 4K Ultra HD 4x4 HDMI matrix switch

4x HDMI vstup, 4x HDMI výstup. Profesionálny 4K x 2K HDMI prenosný maticový prepínač, ľubovoľný vstup na ľubovoľný výstup. Podpora 4K Ulra HD displejov s HDMI vstupom. Podporované rozlíšenia až 4K , podpora 3D, Dolby TrueHD, DTS-HD Master Audio. Ovládanie RS232, IP, IR, tlačidlá, indikácia stavu. Features Routes four Ultra Hi-Def sources to four Ultra HD displays Supports resolutions up to Ultra HD 4K (3840 x 2160 @ 60Hz 4:2:0 or 30Hz 4:4:4), 4K Cinema (DCI) @ 24 or 30Hz 4:4:4), and 1080p Full HD HDMI 2.0 compliant HDCP 1.4 compliant Supports 12-bit Deep Color (up to 1080p Full HD) 3DTV pass-through Lip Sync pass-through Push button controls for Routing, FST Modes, Audio, and EDID management FST Technology speeds up HDCP authentication process Advanced EDID Management for rapid integration of sources and displays Supports LPCM 7.1, Dolby® TrueHD, Dolby® Digital Plus, and DTS-HD Master Audio™ Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included) RS-232 Serial interface for remote control using a computer or automation control system IP control via Telnet, UDP, and the built-in web server interface IR remote control Field-upgradeable firmware via Mini-USB and IP ports Locking Power Supply Surface-mountable Specifications Maximum Pixel Clock: 300 MHz HDMI Input Connectors: (4) Type A 19-pin female, locking HDMI Output Connectors: (4) Type A 19-pin female, locking USB Port: (1) Mini-B RS-232 serial port: (1) DB-9, female Ethernet (IP Control) Port: (1) RJ-45 Power Indicator: (1) LED, blue FST Indicators: (2) LED, green Audio Indicators: (2) LED, green Audio Indicators: (2) LED, green EDID Indicators: (3) LED, green Routing Indicators: (16) LED, green vFST Selector: (1) tact-type, recessed push-button Audio Selector: (1) tact-type, recessed push-button EDID Selector: (1) tact-type, recessed push-buttons Routing Selectors: (4) tact-type push-buttons IR Sensor: (1), on front panel IR Extender Port: (1) 3.5mm mini-stereo jack DC Power Connector: (1) Locking type Power Supply: 5V DC Power Consumption: 13 Watts (max.) Operating Temperature: +32 to 104 °F (0 to +40 °C) Dimensions (W x H x D): 6.9" x 11.9" x 1.0" (175mm x 302mm x 26mm) vShipping Weight: 6 lbs. (2.7 kg) Gefen je jedným z popredných výrobcov zariadení pre spracovanie a distribúciu signálu.
