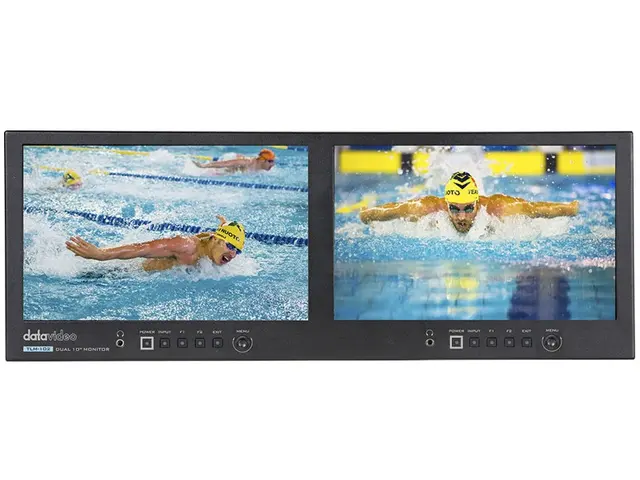

Datavideo TLM-102

duálny 2x10" monitor, 3G/HD/SD 1280x800 rozlíšenie, 1 x 3G/HD/SD-SDI, 1 x HDMI vstupy, funkcie column (YRGB peak), time code, waveform, vector scope a audio level meter, peaking, zoom, pix to pix, underscan, check field. 12V napájanie Screen Dual 10.1" LCD Chassis 4RU Rack Mount Resolution 1280x800 Viewing Angle (H) +85/-85° , (V) +85/-85° Luminance/Contrast 300cd/m2 800:1 Video Inputs 2x 3G/HD/SD-SDI, 2x HDMI Loop Through 2x 3G/HD/SD-SDI, 2x HDMI Supported Input Resolutions 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i(50/59.94/60Hz), 720p(23.98/24/25/29.97/30/50/59.94/60Hz), 480i(NTSC), 576i(PAL) Aspect Ratio 16:9, 4:3 Tally LED Live (Red) Cued (Green) Audio In/Out Embedded Audio on SDI and HDMI Headphone Jack Special Features time code, waveform, vector scope & audio level meter , peaking, zoom, pix to pix, underscan, SDI, HDMI cross conversion Dimension (LxWxH) 481 x 177 x 38 mm Weight 3.5 kg Operating Temp. Range 0~40 °C Power DC 12V, 28W 1 x TLM-102 product 1 x AD Switch DC 12V with AC Cord 1 x Tally Convertor 2 x Screw ?3.0*6m/m 4 x Screw M5 x 10mm
