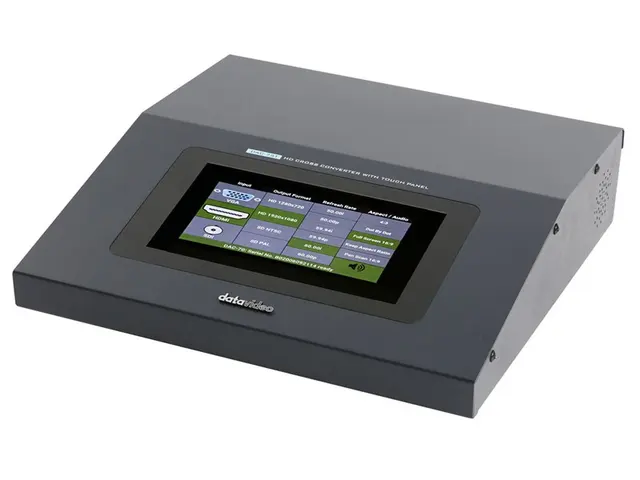

Datavideo DAC-75T

multiformátový HD konvertor VGA, HDMI, SDI a audio na 3G/HD/SD SDI s dotykovým 7" panelom. Conversion VGA/HDMI/SDI to HDMI/SDI Multi-format Up/Down/Cross Video Inputs 1x VGA, 1x HDMI, 1x 3G/HD/SD-SDI Loop Through Video Outputs 2x 3G/HD/SD-SDI with embedded Audio, 1x HDMI Audio Inputs 2x RCA (Stereo Pair), 2x SDI/HDMI Audio embedded Audio Outputs SDI embedded audio up to 8CH, 48KHz, PCM audio HDMI embedded audio up to 8CH, 48KHz, PCM audio Supported Video Input Formats 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080psf(23.98/24/25/29.97/30Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 576p, 576i, 525i, 480p, 480i, 1920x1080(60Hz), 1280x720(60Hz), 1600x1200(60Hz), 1400x1050(60Hz), 1366x768(60Hz), 1280x1024(60Hz), 1024x768(60Hz), 800x600 (60Hz) Output Resolutions 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i, 525i Equalizer Reclock SDI Cable Drive Dimension (LxWxH) 280 x 300 x 70 mm Weight 2.4 kg
