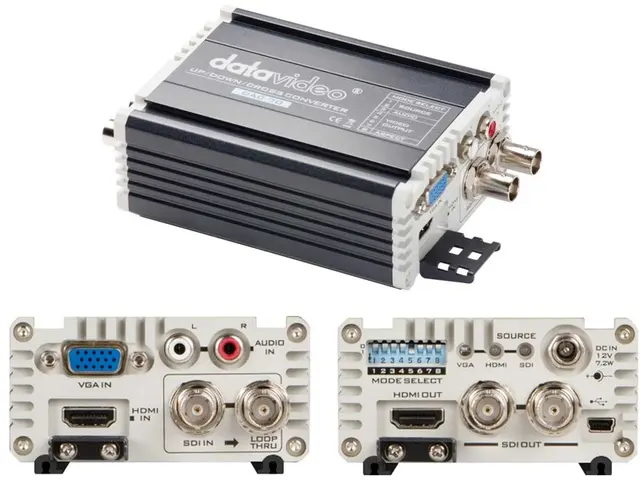

Datavideo DAC-70

up/down/cross konvertor z VGA, HDMI, SDI s Audio vstupom na 3G/HD/SD SDI výstup. Výborný pre pripojenie VGA a HDMI výstupu z počítača na SDI zariadenia pre prenos na veľkú vzdialenosť cez SDI káble. Video Inputs (VGA x 1, HDMI x 1 , HD/SD-SDI x 1) SDI (YUV): 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 525i, 625i HDMI (YUV / RGB): 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080psf30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 480p, 576p, 480i, 576i, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz VGA (RGB): 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1280x720@60Hz, 1920x1080@60Hz Video Outputs (SDI x 2, HDMI x 1, SDI Loop thru BNC (front panel)) SDI / HDMI : 1080p60/59.94/50, 1080p30/29.97/25/24/23.98, 1080i60/59.94/50, 720p60/59.94/50, 525i, 625i Audio Format (Input) Analog Audio L/R : stereo audio SDI / HDMI embedded audio up to 8CH, 48KHz, PCM audio HDMI embedded audio up to 8CH, 44.1/48/96KHz, PCM audio Audio Format (Output) SDI embedded audio up to 8CH, 48KHz, PCM audio HDMI embedded audio up to 8CH, 48KHz, PCM audio
